Download free HVAC air diffuser DWG blocks
Download free HVAC air diffuser DWG blocks to create HVAC, architectural, and engineering drawings faster and with better consistency. This free DWG resource is ideal for producing professional CAD documents that are clean, easy to read, and suitable for real project work.

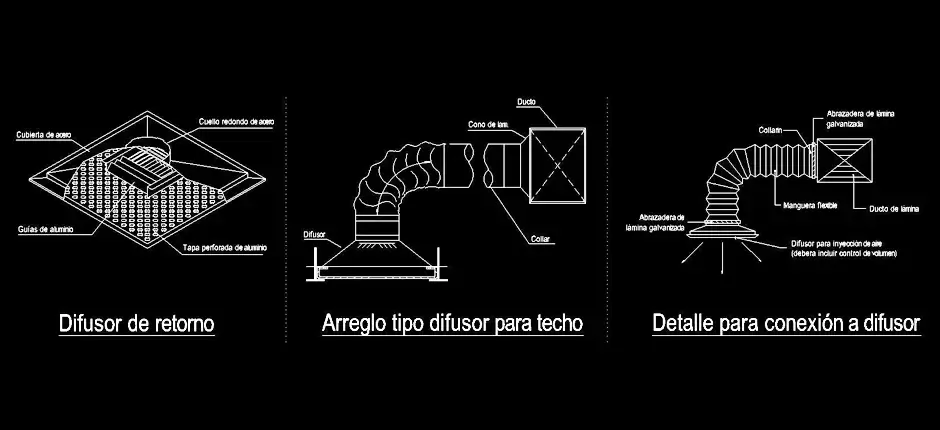

The file includes return air diffusers, ceiling layout configurations, and flexible duct connection details for ventilation systems. It is especially useful for air conditioning plans, suspended ceiling drawings, offices, retail spaces, hotels, schools, and public buildings, where technical elements need to fit naturally into the design with accurate proportions and clear graphic presentation.
Using these blocks can improve coordination between architectural drawings, MEP systems, and construction details. They help you review equipment locations, confirm clearances, study possible connection routes, and organize the overall layout of air distribution components more efficiently.
These DWG blocks also make it easier to place air terminals accurately and check how the ceiling, ductwork, and mechanical equipment work together within the same drawing. Each block can be moved, copied, scaled, or added to an internal DWG library to match the standards and workflow of your office or design team.
The file is compatible with AutoCAD, AutoCAD LT, AutoCAD for Mac, and other native DWG CAD platforms such as BricsCAD, ZWCAD, DraftSight, GstarCAD, progeCAD Professional, nanoCAD, and CMS IntelliCAD.
It can also be used in BIM and architectural software such as Autodesk Revit, Archicad, Vectorworks, Allplan, and SketchUp Pro, as well as in mechanical CAD and 3D modeling applications including SolidWorks, Autodesk Inventor, Autodesk Fusion, and Rhino 3D. Free or open-source alternatives like LibreCAD, QCAD Professional, and FreeCAD may also support the file through DWG or DXF import tools.
